2625621
CARTRIDGE CLOSED WITH HOLE 13.5 MM ULTRA-WEB FR OD 324 MM X L 600 MM EARTHED

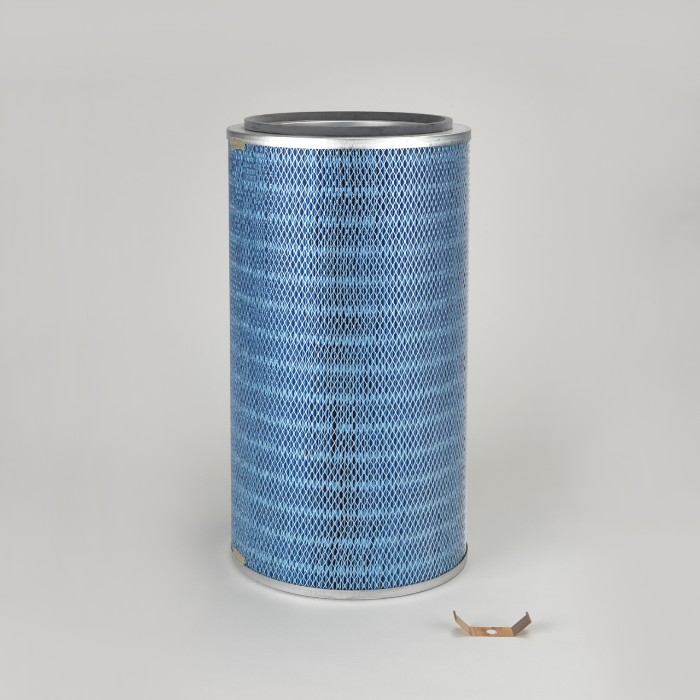

Cartridge Filter with open top end cap and closed bottom end cap with hole of 13,5 mm in Ultra-Web Flame Retardant, 324 mm outer diameter x 600 mm long; Special feature: Earthed for Series 324 and other brands of cartridge collectors
CARTRIDGE OPEN/OPEN ULTRA-WEB FR OD 352 MM X L 708 MM EARTHEDCARTRIDGE OPEN/OPEN ULTRA-WEB FR OD 352 MM X L 708 MM EARTHEDCARTRIDGE OPEN/OPEN ULTRA-WEB FR OD 352 MM X L 708 MM EARTHEDCARTRIDGE OPEN/OPEN ULTRA-WEB FR OD 352 MM X L 708 MM EARTHEDCartridge Filter with open top end cap and open bottom end cap in Ultra-Web Flame Retardant, 352 mm outer diameter x 708 mm long; Special feature: Earthed for AAF Optiflo and other brands of cartridge collectorsCARTRIDGE OPEN/OPEN ULTRA-WEB FR OD 352 MM X L 708 MM EARTHEDCartridge Filter with open top end cap and open bottom end cap in Ultra-Web Flame Retardant, 352 mm outer diameter x 708 mm long for AAF Optiflo and other brands of cartridge collectorsCartridge Filter with open top end cap and open bottom end cap in Ultra-Web Flame Retardant, 352 mm outer diameter x 708 mm long for AAF Optiflo and other brands of cartridge collectorsAttributes
Outer Diameter |
289 mm (11.38 inch) |
Outer Diameter 2 |
365 mm (14.37 inch) |
Length |
660 mm (25.98 inch) |
Media Type |
Ultra-Web Spunbond |
Filter Area |
8.4 m² (90.42 ft²) |
Inner Diameter |
203 mm (7.99 inch) |
Inner Diameter 2 |
279 mm (10.98 inch) |
Temperature Limit |
93 °C |
Liner |
No |
End Cap Construction |
Open/Open |
Construction |
Galvanized |
Shape |
Oval |
Pleat Height |
38 mm (1.50 inch) |
Pleat Count |
171 |
Anti-Static |
Yes |
Flame Retardant |
No |
Food Compliant |
No |
Current Brand |
Donaldson Torit |
Packaged Dimensions
Gross Length |
0.38 M |
Gross Width |
0.32 M |
Gross Height |
0.74 M |
Gross Weight |
5.123 KG |
Gross Volume |
0.08998 M3 |
