2625551
2625551
CARTRIDGE QUICK FIX 3 HOOK POLYESTER OD 145 MM X L 715 MM DAP
u dodavatele
0 CZK
bez DPH
0 CZK
s DPH

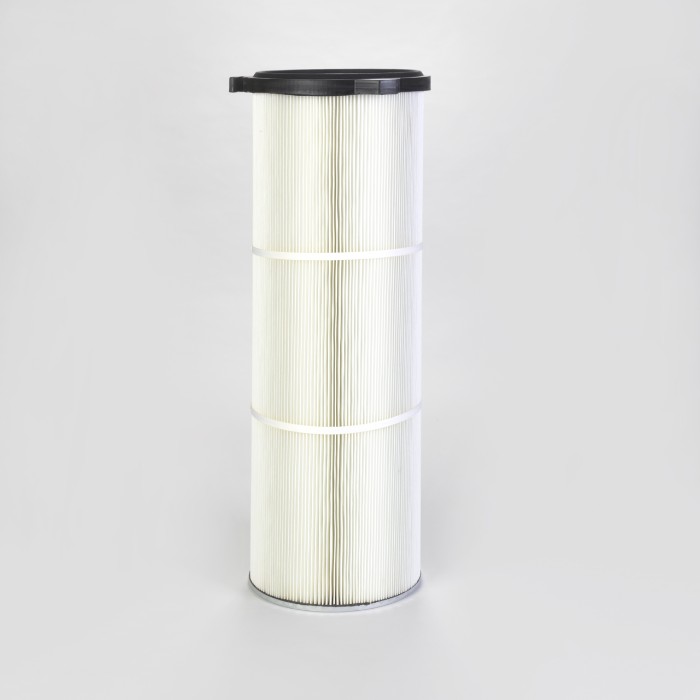

CARTRIDGE QUICK FIX 3 HOOK POLYESTER OD 145 MM X L 715 MM DAP
Cartridge Filter with open top end cap with 3 hooks, 180 mm pitch diameter and closed bottom end cap in Polyester Spunbond, 145 mm outer diameter x 715 mm long including top gasket; Special feature: Dirty Air Plenum installation for Series 145 and other brands of cartridge collectors
CARTRIDGE OPEN/OPEN ULTRA-WEB FR OD 352 MM X L 708 MM EARTHEDCARTRIDGE OPEN/OPEN ULTRA-WEB FR OD 352 MM X L 708 MM EARTHEDCARTRIDGE OPEN/OPEN ULTRA-WEB FR OD 352 MM X L 708 MM EARTHEDCARTRIDGE OPEN/OPEN ULTRA-WEB FR OD 352 MM X L 708 MM EARTHEDCartridge Filter with open top end cap and open bottom end cap in Ultra-Web Flame Retardant, 352 mm outer diameter x 708 mm long; Special feature: Earthed for AAF Optiflo and other brands of cartridge collectorsCARTRIDGE OPEN/OPEN ULTRA-WEB FR OD 352 MM X L 708 MM EARTHEDCartridge Filter with open top end cap and open bottom end cap in Ultra-Web Flame Retardant, 352 mm outer diameter x 708 mm long for AAF Optiflo and other brands of cartridge collectorsCartridge Filter with open top end cap and open bottom end cap in Ultra-Web Flame Retardant, 352 mm outer diameter x 708 mm long for AAF Optiflo and other brands of cartridge collectorsAttributes
| Outer Diameter | 289 mm (11.38 inch) |
| Outer Diameter 2 | 365 mm (14.37 inch) |
| Length | 660 mm (25.98 inch) |
| Media Type | Ultra-Web Spunbond |
| Filter Area | 8.4 m² (90.42 ft²) |
| Inner Diameter | 203 mm (7.99 inch) |
| Inner Diameter 2 | 279 mm (10.98 inch) |
| Temperature Limit | 93 °C |
| Liner | No |
| End Cap Construction | Open/Open |
| Construction | Galvanized |
| Shape | Oval |
| Pleat Height | 38 mm (1.50 inch) |
| Pleat Count | 171 |
| Anti-Static | Yes |
| Flame Retardant | No |
| Food Compliant | No |
| Current Brand | Donaldson Torit |
Packaged Dimensions
| Gross Length | 0.38 M |
| Gross Width | 0.32 M |
| Gross Height | 0.74 M |
| Gross Weight | 5.123 KG |
| Gross Volume | 0.08998 M3 |
Other Information
| Country of Origin | Czech Republic |
| HTS Code | 84213925 90 |
2625002 (2625002-000-440)
CARTRIDGE TD ULTRA-WEB OD 324 MM X L 660 MM
u dodavatele
Cena
0 CZK
bez DPH
2625002NE
CARTRIDGE TD ULTRA-WEB OD 324 MM X L 660 MM EARTHED NEUTRAL
u dodavatele
Cena
0 CZK
bez DPH
